![ROSS EUROPA G1 4-WAY SOL PAC, Voltage: 220/50, 220-240/60, Standard Temperatures [Classic 27 Series]; D2776B6001](https://www.ep-solutions.rs/uploads/prodimgs/b/ross-europa-g1-4-way-sol-pac-voltage-22050-220-24060-standard-temperatures-classic-27-series-d2776b6001.png "ROSS EUROPA G1 4-WAY SOL PAC, Voltage: 220/50, 220-240/60, Standard Temperatures [Classic 27 Series]; D2776B6001")

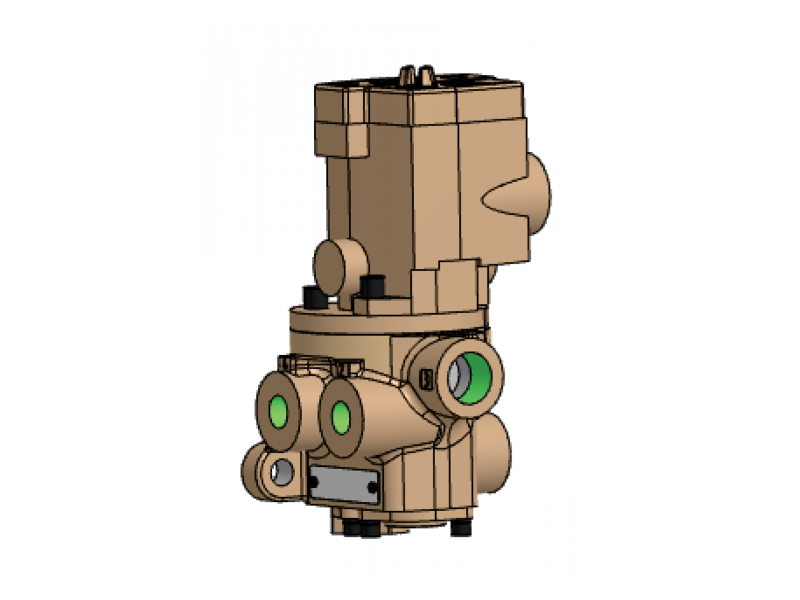

ROSS EUROPA G1 4-WAY SOL PAC, Voltage: 220/50, 220-240/60, Standard Temperatures [Classic 27 Series]; D2776B6001
2013005_VENTIL ELEKTROMAGNETNI D2776 B 6001 24 DC ROSS G1 4-WAY SOL PAC, Voltage: 220/50, 220-240/60, weight: 1,5190 kg / 6,0760 kg, commodity code: 84812090, country...
Cena na upit
2013005_VENTIL ELEKTROMAGNETNI D2776 B 6001 24 DC ROSS
G1 4-WAY SOL PAC, Voltage: 220/50, 220-240/60, weight: 1,5190 kg / 6,0760 kg, commodity code: 84812090, country of origin: DE
G1 4-WAY SOL PAC, Voltage: 220/50, 220-240/60, weight: 1,5190 kg / 6,0760 kg, commodity code: 84812090, country of origin: DE
| Valve Type | Directional Control |
| Series | 27 |
| Application | General |
| Actuation | Electrical |
| Function | 4/2 Single Solenoid |
| Default Position | Normally Open |
| Return | Spring |
| Thread Type | G |
| Inlet Pipe Size | 1" |
| Outlet Pipe Size | 1" |
| Exhaust Pipe Size | 1-1/2" |
| Construction | Poppet |
| Mounting | Inline |
| Connection | Hardwired |
| Pilot Type | Internal/External |
| Manual Override | Non-locking |
| Size | 1-1/4" |
| Cv (1-2) | 19 |
| Cv (1-4) | 19 |
| Cv (2-3) | 26 |
| Cv (4-3) | 26 |
| Voltage | 220 VAC |
| Duty Rating | Continuous Duty |
| Power Consumption | 190 VA inrush, 40 VA holding on 50 or 60 Hz |
| Ambient Temperature | 40 to 120 F (4 to 50 C) |
| Media Temperature | 40 to 175 F (4 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 15 to 150 psig (1 to 10 bar) |
| Pilot Supply Minimum | equal to or greater than inlet pressure |
| Width | 6.49 in (165 mm) |
| Height | 10.32 in (262 mm) |
| Weight | 11.3 lb (5.1 kg) |
| Valve Body Material | Cast Aluminum |
| Poppet/Spool Material | Acetal, Stainless Steel |
| Seal Material | Buna-N |
-
21 27 Series Poppet Valves Operation Manual ATEX RE-05 Rev.05.2015
-
Directional Control Valves Classic 27 Series ROSS-27-H EN
-
ROSS 27 Series Poppet Valve And Adaptors Installation Instructions SS096
